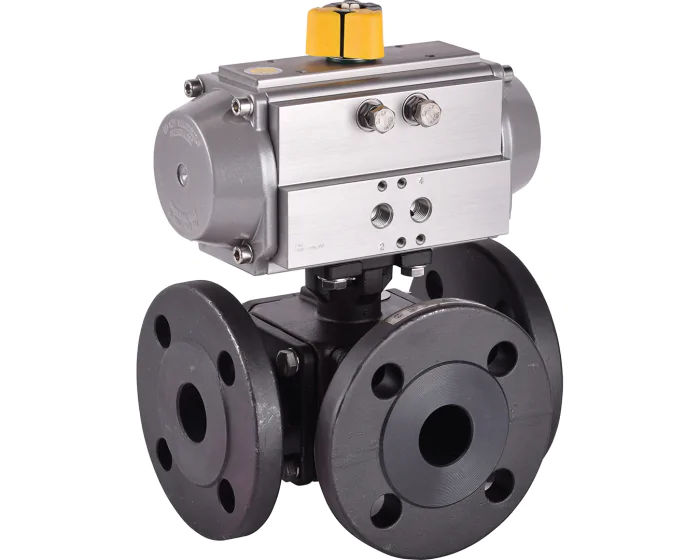

The 783-L/784-T series 3-way ball valve has a carbon steel body (1.0619), a stainless steel ball and PTFE seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 16 bar, TS: 150°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN25 - 1'' |
| Face to Face (mm) | 292.2 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 3 |
| Bore | Reduced |
| Packing gland | PTFE |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel 304 |
| Surface temperature | TX |
| TS max (°C) | 150 |
| TS min (°C) | -20 |
| 3-way type | T-port |
| Pneumatic actuator type | Spring return |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category II |
| Range | Industry |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN25 - 1'' | 275674017007R | S1000661 |
€557.73
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN25 - 1'' | 275674017108R | S1000662 |
€636.56
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN32 - 1''1/4 | 275675017008R | S1000663 |
€739.89
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN32 - 1''1/4 | 275675017109R | S1000664 |
€827.69
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN40 - 1''1/2 | 275676017008R | S1000665 |
€781.31
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN40 - 1''1/2 | 275676017110R | S1000666 |
€941.46
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN50 - 2'' | 275677017009R | S1000667 |
€1,203.99
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN50 - 2'' | 275677017111R | S1000668 |
€1,456.86
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN65 - 2''1/2 | 275678017010R | S1000669 |
€1,639.16
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN65 - 2''1/2 | 275678017112R | S1000670 |
€1,898.60
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN80 - 3'' | 275679017011R | S1000671 |
€2,172.60
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN80 - 3'' | 275679017113R | S1000672 |
€2,607.11
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN100 - 4'' | 275680017012R | S1000673 |
€4,318.97
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN100 - 4'' | 275680017114R | S1000674 |
€4,848.71
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN125 - 5'' | 275681017013R | S1000675 |
€5,888.09
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN125 - 5'' | 275681017115R | S1000676 |
€6,820.11
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN150 - 6'' | 275682017014R | S1000677 |
€8,428.27
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN150 - 6'' | 275682017116R | S1000678 |
€9,383.86
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN25 - 1'' | 275684017007R | S1000679 |
€557.73
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN25 - 1'' | 275684017108R | S1000680 |
€636.56
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN32 - 1''1/4 | 275685017008R | S1000681 |
€739.89
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN32 - 1''1/4 | 275685017109R | S1000682 |
€827.69
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN40 - 1''1/2 | 275686017008R | S1000683 |
€781.31
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN40 - 1''1/2 | 275686017110R | S1000684 |
€941.46
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN50 - 2'' | 275687017009R | S1000685 |
€1,203.99
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN50 - 2'' | 275687017111R | S1000686 |
€1,456.86
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN65 - 2''1/2 | 275688017010R | S1000687 |
€1,639.16
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN65 - 2''1/2 | 275688017112R | S1000688 |
€1,898.60
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN80 - 3'' | 275689017011R | S1000689 |
€2,172.60
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Reduced DN80 - 3'' | 275689017113R | S1000690 |
€2,607.11
(excl. btw)
|
add to cart |
